GPU Troubleshooting Guide: Display Port Issues

Overview

This guide provides a systematic approach to troubleshooting GPU display port connectivity problems. It addresses scenarios where one or more display ports on a GPU are not functioning correctly, helping you identify whether the issue is related to hardware, software, or configuration.

Symptoms

• No display output from one or more GPU ports
• Intermittent display connection
• Display working in OS but not during POST/BIOS
• Certain ports showing as "disconnected" despite having a monitor connected

Troubleshooting Steps

Step 1: Simplify Your Setup

• Connect only one display at a time
• Some GPUs prioritize certain ports during POST/BIOS
• Remove adapters if possible and use direct connections

Step 2: Systematic Port Testing

• Test each port individually using the same known-working cable and monitor
• Document which ports work and which don't
• Pay attention to different behavior between POST and OS boot

Step 3: Eliminate External Factors

• Swap to a different monitor to rule out monitor compatibility issues
• Try different cables to rule out cable failures
• If available, test the monitor and cable with another system

Step 4: Test Alternative Display Outputs

• If applicable, check if the system boots using the VGA port
• Some systems may fall back to VGA when other outputs fail

Step 5: Troubleshoot OS-Level Issues

If you're able to boot into the OS:

• If no display on boot, try switching to a virtual console with Ctrl+Alt+F2
• Once in OS with a working port, use xrandr to check port status:


  xrandr
  xrandr --listmonitors


• Look for ports that show as "disconnected" even with a display connected

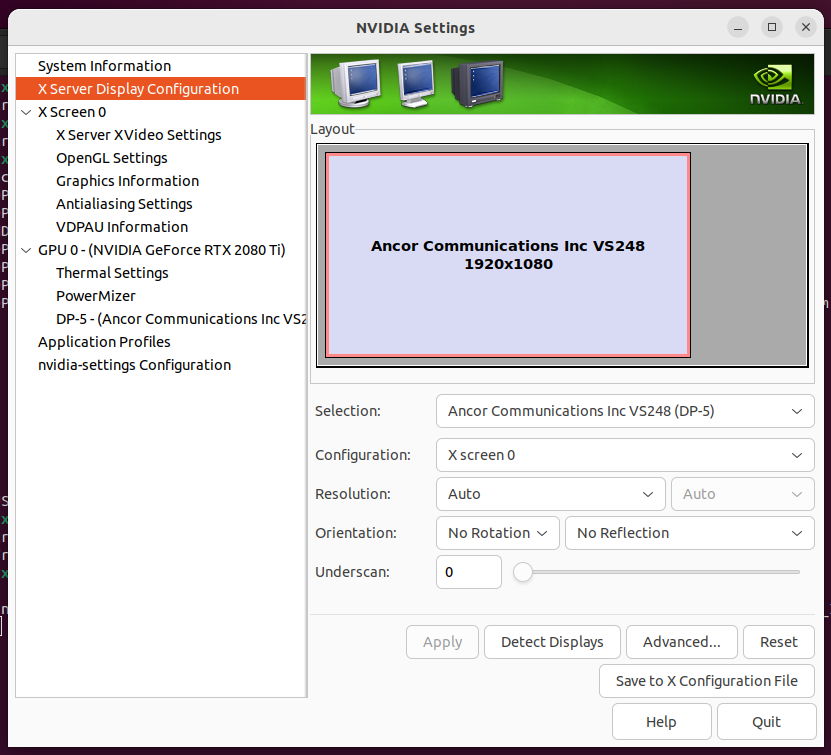

• Check NVIDIA settings utility:

nvidia-settings





• Under "X Server Display Configuration," verify which outputs are recognized

Step 6: Enable Kernel Modesetting

Display outputs may not initialize properly without kernel modesetting:

1. Edit your GRUB configuration:

   sudo vi /etc/default/grub

2. Add or modify the GRUB_CMDLINE_LINUX line to include:

   GRUB_CMDLINE_LINUX="nvidia-drm.modeset=1"

   (Merge with existing parameters if present


3. Update GRUB and reboot:


   • Run update-grub after making changes

   RHEL/CentOS/Rocky/Fedora

   sudo grub2-mkconfig -o /boot/grub2/grub.cfg

   Ubuntu/Debian

   sudo update-grub

   Reboot your system

   sudo reboot

Step 7: Enable Persistence Mode

Enable NVIDIA persistence mode to maintain consistent driver state:

1. Create a systemd service file:

   sudo vi /etc/systemd/system/nvidia-persistenced.service

2. Add the following content:

   [Unit]
   Description=NVIDIA Persistence Daemon
   Wants=syslog.target

   [Service]
   Type=forking
   ExecStart=/usr/bin/nvidia-persistenced --verbose
   ExecStopPost=/bin/rm -rf /var/run/nvidia-persistenced

   [Install]
   WantedBy=multi-user.target


3. Enable and start the service:


   sudo systemctl enable nvidia-persistenced
   sudo systemctl start nvidia-persistenced

Step 8: Rule Out Hardware Failure

If after these steps some ports still don't work while others do:

• You've tested multiple cables
• You've tested multiple monitors
• You're using the correct drivers
• You've enabled modesetting and persistence

Then the issue is likely hardware-related:

• Damaged GPU port
• Partial failure of the display controller
• Manufacturing defect

In these cases, consider:

• If under warranty, contact the manufacturer for RMA
• If using a multi-port GPU, adjust your workflow to use the working ports
• Consider replacement if all ports are crucial for your setup

Prevention Tips

• Avoid frequent plugging/unplugging of display cables
• Handle cables and ports gently to prevent damage
• Ensure proper cooling to prevent thermal stress
• Update GPU firmware when available
• Maintain updated GPU drivers
