Document Scope:
This article covers how to access the internal components of an Exxact DevBox.
Chassis Diagram:

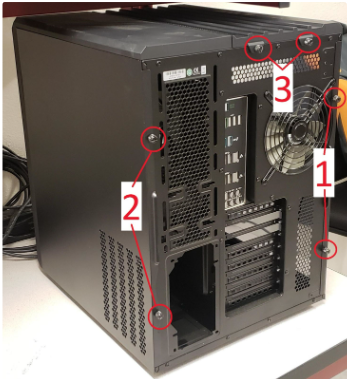

Layout of screws for each of three panels:
Layout of screws from opposite angle:
Instructions with Videos:
Window Panel:
Remove the two screws labeled "1" in diagram.
Pull back on the handle to uncover the motherboard and its installed components, along with the two 3.5” drive trays located at the bottom of the chassis.
Window-less Panel:
Remove the two screws labeled "2" in diagram.
Pull back on the handle to expose the power supply, cables, and the 2.5” drive cage.
Top Panel:
Remove the two screws labeled "3" in diagram.
Pull back on the top-side of the cover to reveal the upper part of the chassis. Here, you'll find the liquid-cooling CPU fan, as well as the heatsink/radiator assembly attached to it.
