How to Connect Cable Connectors to PSU

Objective:

Connect component power connectors to Sparkle Power Supply Unit 2000W ATX.

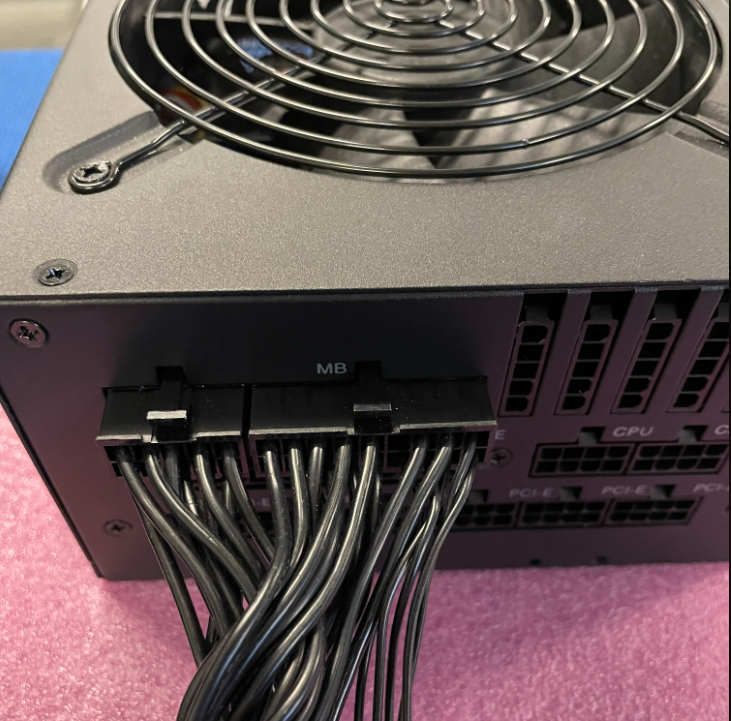

Step 1: Connect the Motherboard PSU cable(s) to the MB slot(s).

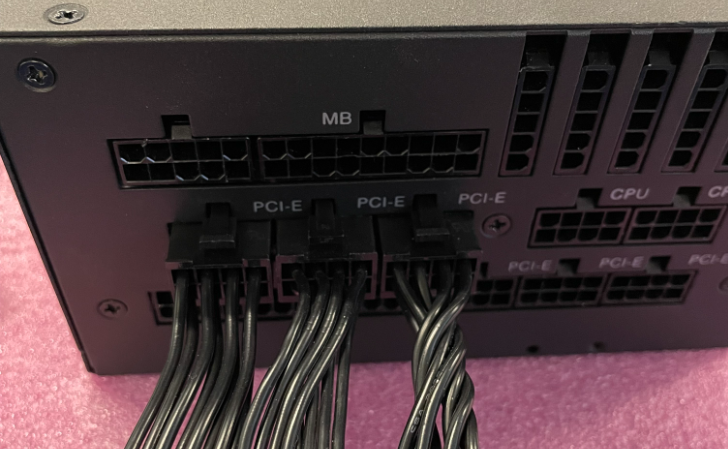

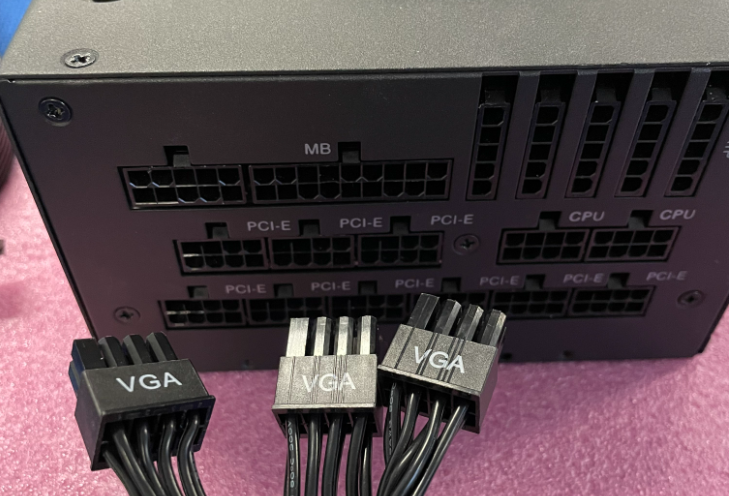

Step 2: Connect the VGA cable(s) to the PCI-E slot(s).

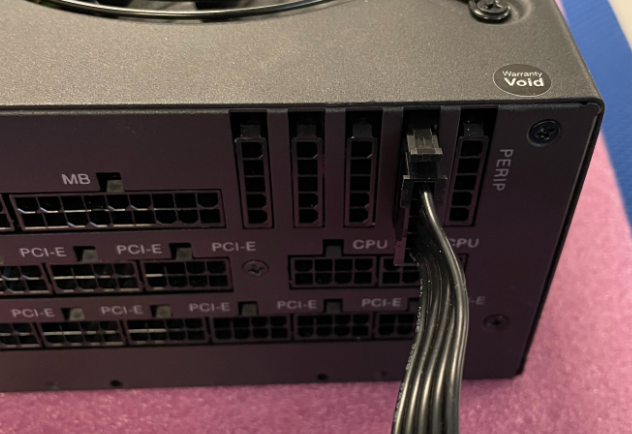

Step 3: Connect the HDD cable(s) (usually not labeled) to the PERIP slot(s).

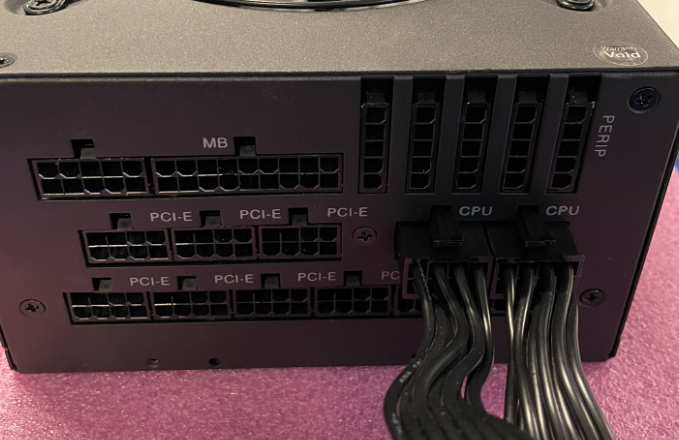

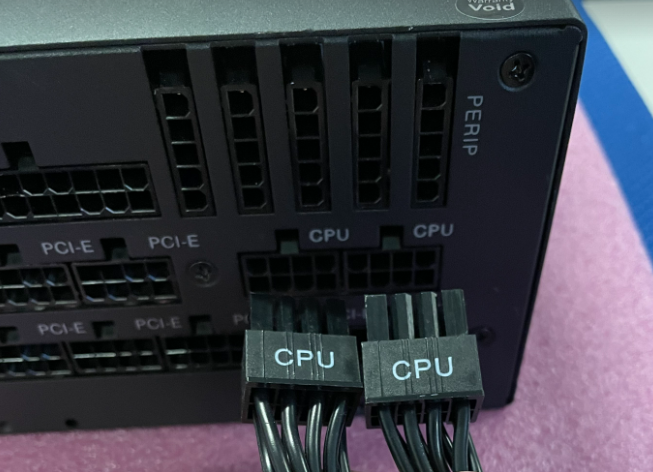

Step 4: Connect the CPU cable(s) to the CPU slot(s).

Complete:

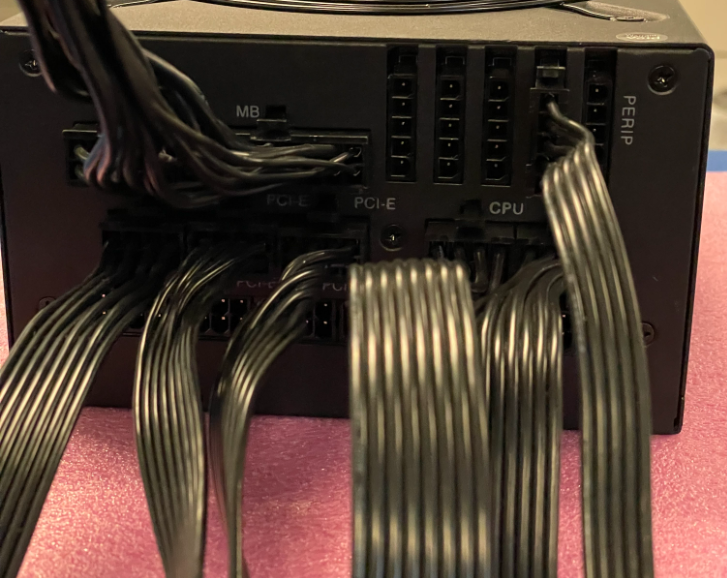

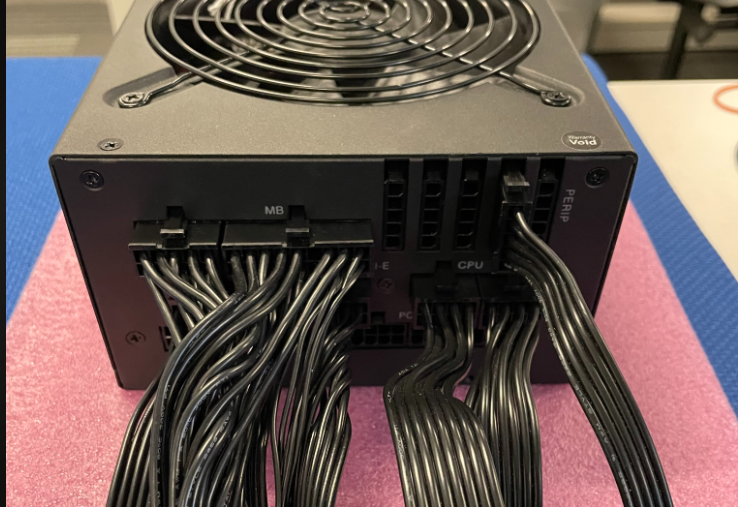

This is how the PSU connections should look like when all the cables are connected.



Note:

Your configuration may differ in the amount of component and PSU cables needed. Please refer to your system configuration needs.
